1.6T Integrated BERT & Thermal Test Platform
1.6T / 800G / 400G · dual-port parallel testing · -45 to +130 °C
The Trendsemi 1.6T integrated test platform combines a high-speed bit error rate tester (BERT), TEC temperature control and optical-port MCB. It supports R&D validation, incoming inspection and production testing of pluggable optical transceivers.
Native dual-port parallel testing, with a single-channel option. Integrated optical ports require no additional optoelectronic conversion accessories.

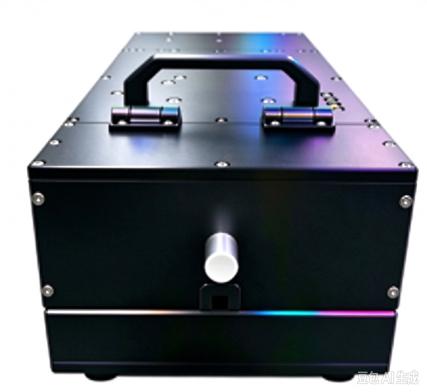

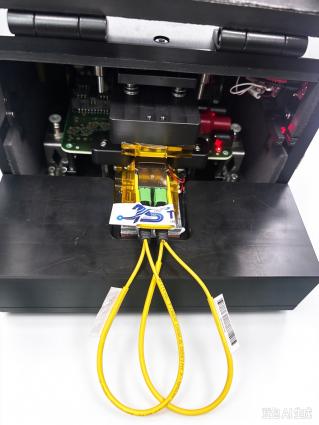

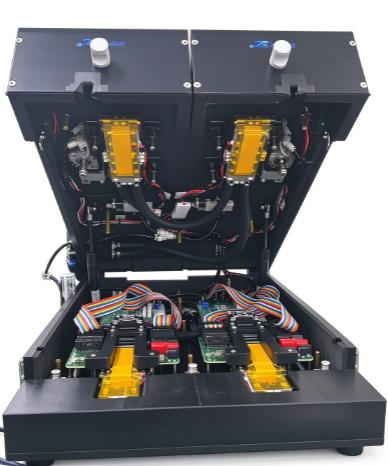

System / 设备实拍
Images from Trendsemi specification V1.0, September 2026 / 图片源自 2026 年 9 月 V1.0 规格书。
Features
Specifications
| Data rate / 单通道速率 | 106.25 Gbaud / 212.5 Gbps max |
| Modulation / 调制 | PAM4 / NRZ; Precoding, Gray |
| TX amplitude / 发射端差分幅度 | < 1000 mVpp |
| Patterns / 码型 | PRBS7/9/11/13/15/23/31/58, PRBS7~58Q, SSPRQ, User pattern |
| Frequency accuracy / 频率精度 | ±50 ppm |
| Pre-emphasis / 预加重 | 14 Tap |
| FEC | KP4 FEC |
| RX sensitivity / 接收灵敏度 | < 100 mVpp (differential / 差分) |
| Input impedance / 输入阻抗 | 50 Ω |
| Temperature / 温度范围 | -45 ~ +130 °C |
| Stability / 稳定性 | ±0.1 °C |
| Accuracy / 精度 | ±0.5 °C |
| Heating / 升温速率 | 3.4 °C/s |
| Cooling / 降温速率 | 1.8 °C/s |
| Packages / 封装 | OSFP / OSFP-RHS / QSFP-DD |
| Ports / 端口 | 2; single-channel option / 可选单通道 |
| Interfaces / 接口 | LAN / RS232 / RS485 |
| Supply / 供电 | 220 V |
| Host + controller / 主机及控制器功率 | 1800 W |
| Chiller / 冷水机功率 | 1000 W |
| Host dimensions / 主机尺寸 | 530 × 350 × 141 mm |
| Controller dimensions / 控制器尺寸 | 450 × 430 × 170 mm |
| Chiller dimensions / 冷水机尺寸 | 354 × 384 × 851 mm |
